Traffic management for drones

Ping20Si

Mini Mode-S transponder for drone operation

Ping20Si is a mini mode-S transponder. Allows detection of the drone by a secondary radar, TCAS or ADS-B receiver.
Ping20Si is a mini mode-S transponder. Allows detection of the drone by a secondary radar, TCAS or ADS-B receiver.

Traffic management for drones

Ping20Si

Mini Mode-S transponder for drone operation

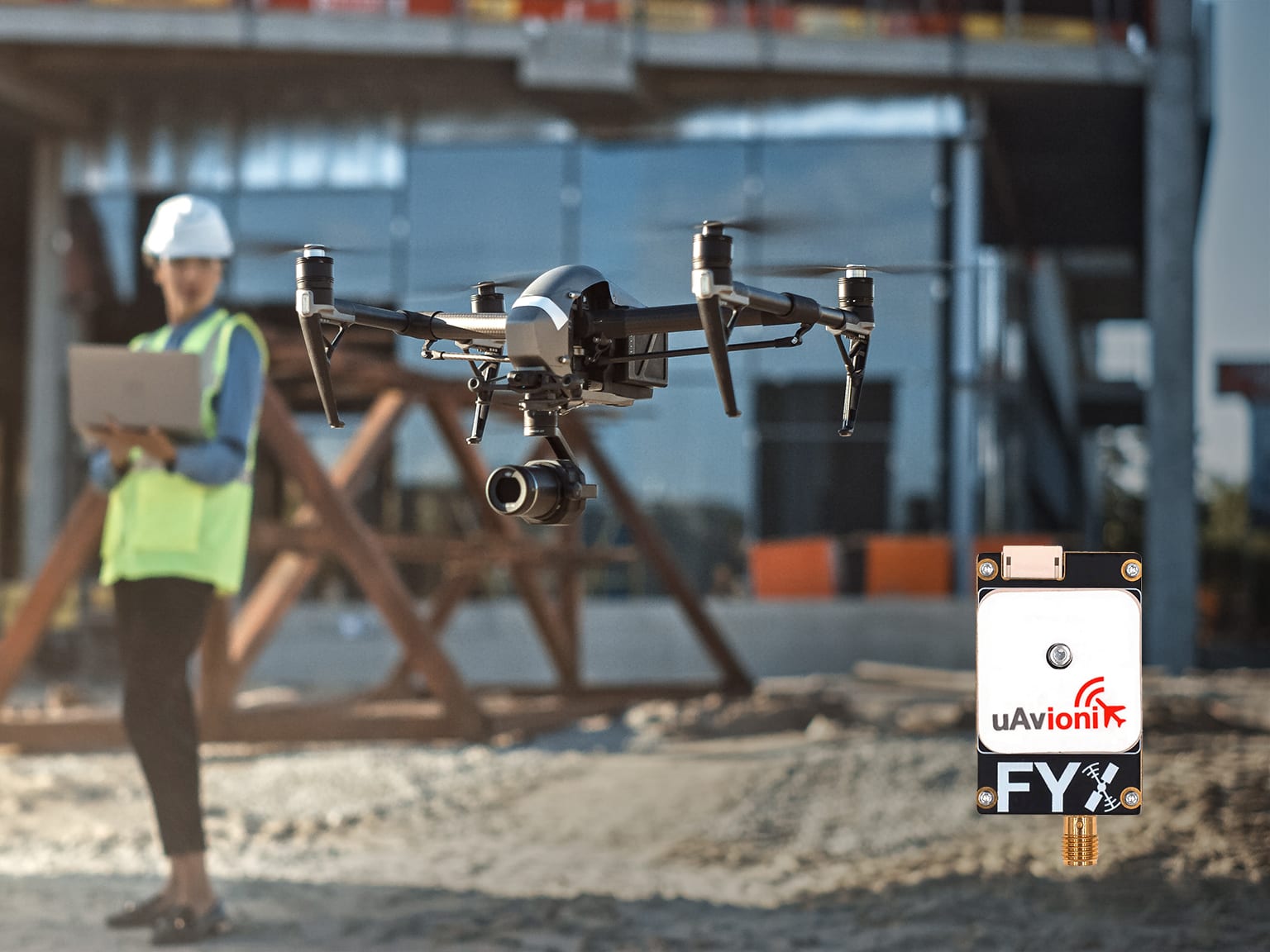

Developed by UAvionix, the Mode S ADS-B transponder Ping20Si is extremely small, lightweight and enables the detection of your drone.

Request now
Do you have questions about the product? Contact form
Tel. +49 69 509 547 400 | Mail. info@droniq. de
Request now
Do you have questions about the product? Contact form
Tel. +49 69 509 547 400 | Mail. info@droniq. de

Product features

Sale possible only to traders
Weight
20 gram
Dimensions
50 x 25 x 17 mm
Operating temperature
-45° C to 80° C
Antennas
ADS-B
Shipping weight
0,24 kg

Advantages

  • Weighing only 20g.
  • Very compact and can be installed in small drones.
  • Makes drones visible to secondary radar, TCAS and ADS-B receivers.
  • Compatible with many autopilots.

Intended use

Developed by UAvionix, the Ping20Si Mode S ADS-B transponder is extremely small, lightweight and enables your drone to be detected by a secondary radar (SSR), traffic alert and collision avoidance system (TCAS) and ADS-B in-receiver.

Scope of delivery

  • Ping20Si transponder
  • Antenna
  • Power cable
  • Connection cable for Pixhawk
  • Ping APP can be downloaded via App Store (iOS) or Google Play (Android)

Note
We would like to point out that the product is intended for commercial users only.
In addition, before putting the Ping20Si transponder into operation, you must have the uses approved by the responsible air traffic control and, if applicable, authority(ies).

Technical data

Hardwareping20Si
Input power11-28V1W Ave On/Alt.0.5W Standby
Size50 x 25 x 17 mm
Weight20 gram
Operating temperature-45° to 80°C
Receiverping20Si
MTL1030MHz -61dBm
Dynamic range-59 to 0dBm
Transmitterping20Si
1090MHz20W Nominal
Interfacesping20Si
Host Serial57600bps (programmable)
Nav Serial115200bps

Product note

We would like to point out that the product is intended for commercial users only. In addition, before putting the Ping20Si transponder into operation, you must have the uses approved by the responsible air traffic control and, if applicable, authority(ies).

Product Features

  • Secure exchange with air traffic control & aircraft

    The Ping20Si enables drones to respond to Mode S radar interrogations from ATC and TCAS.

  • Compact and lightweight

    At 20 grams, the transponder can be attached to almost any drone, making it currently the smallest and lightest transponder on the market.

  • Fulfilled performance classes

    The Ping20Si meets TSO-C166b Class B1S and TSO-C122e Class 1 Level 1els @ 20W requirements. In addition, the transponder meets the minimum power requirements of the RTCA specifications: DO-181E Class 1 Level 1els @ 20W, DO-260B Class B1S @ 20W, DO-160G Environmental Class B2.

  • Constant data exchange

    The Ping20Si transmits ADS-B on 1090MHz. GPS and pressure altitude data are provided by the built-in FYXnav position source and barometer.

  • Wireless autopilot connection

    The integration of an autopilot is also not required. Powering and setting is easily done via the via the smartphone with the Ping app. If autopilot integration is preferred, the Ping20Si is compatible with many popular autopilots.
