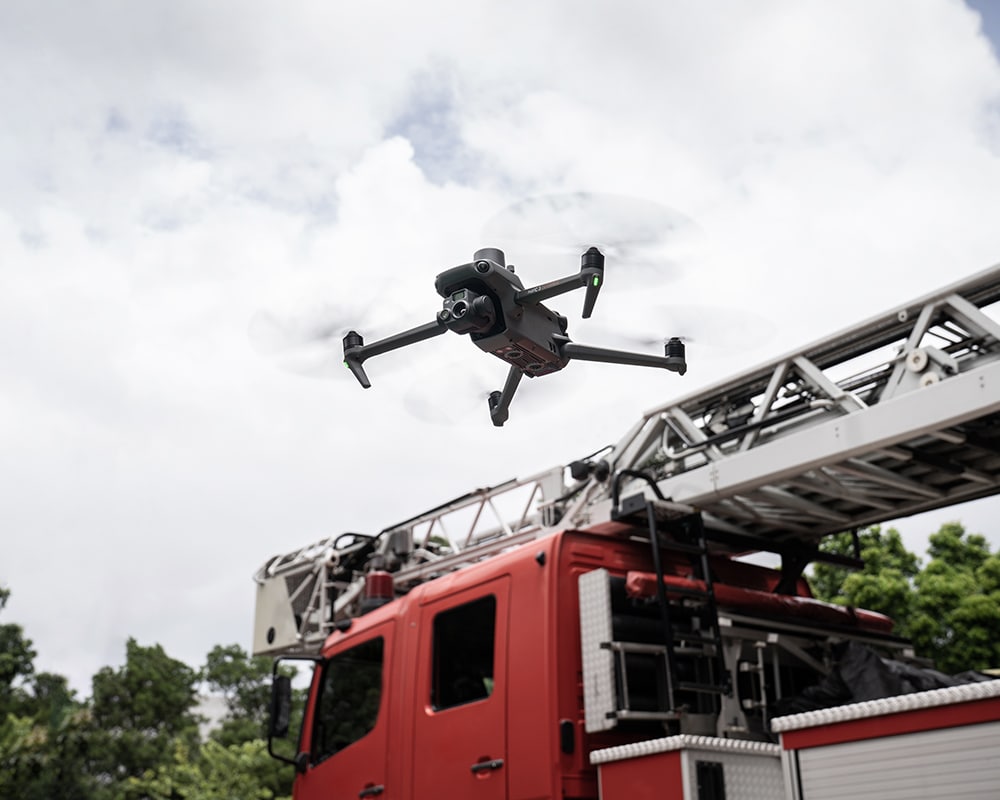

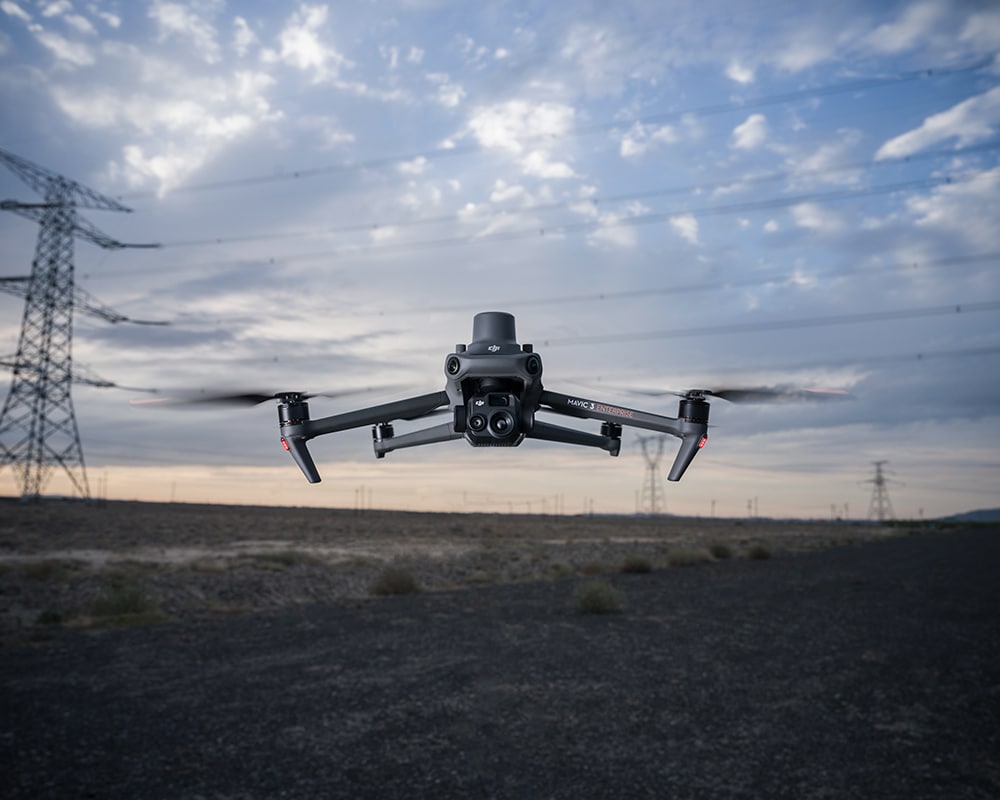

DJI Matrice 3TD Thermal

Drone with infrared, telephoto & wide-angle camera especially for DJI Dock 2

New
The brand new DJI Matrice 3D was developed specifically for the DJI Dock 2. Equipped with a telephoto camera and a wide-angle camera with mechanical shutter, the DJI Matrice M3D meets the requirements for high-precision mapping tasks at a scale of 1:500.
The brand new DJI Matrice 3D was developed specifically for the DJI Dock 2. Equipped with a telephoto camera and a wide-angle camera with mechanical shutter, the DJI Matrice M3D meets the requirements for high-precision mapping tasks at a scale of 1:500.
The brand new DJI Matrice 3D was developed specifically for the DJI Dock 2. Equipped with a telephoto camera and a wide-angle camera with mechanical shutter, the DJI Matrice M3D meets the requirements for high-precision mapping tasks at a scale of 1:500.
The brand new DJI Matrice 3D was developed specifically for the DJI Dock 2. Equipped with a telephoto camera and a wide-angle camera with mechanical shutter, the DJI Matrice M3D meets the requirements for high-precision mapping tasks at a scale of 1:500.
The brand new DJI Matrice 3D was developed specifically for the DJI Dock 2. Equipped with a telephoto camera and a wide-angle camera with mechanical shutter, the DJI Matrice M3D meets the requirements for high-precision mapping tasks at a scale of 1:500.
The brand new DJI Matrice 3D was developed specifically for the DJI Dock 2. Equipped with a telephoto camera and a wide-angle camera with mechanical shutter, the DJI Matrice M3D meets the requirements for high-precision mapping tasks at a scale of 1:500.

Drones

New

DJI Matrice 3TD Thermal

Drone with infrared, telephoto & wide-angle camera especially for DJI Dock 2

The DJI Matrice 3TD was developed specifically for the DJI Dock 2. The Matrice 3TD has a wide-angle camera, a telephoto camera and an infrared camera, which makes it possible to capture both visible light images and thermal images. These features make it suitable for security and inspection tasks.



from € 6,058.00 incl. VAT.
from € 5,090.76 plus VAT.
plus shipping costs
Delivery time: 10-14 working days
Request now
Do you have questions about the product? Contact form
Tel. +49 69 509 547 400 | Mail. info@droniq. de
from € 6,058.00 incl. VAT.
from € 5,090.76 plus VAT.
plus shipping costs
Delivery time: 10-14 working days
Request now
Do you have questions about the product? Contact form
Tel. +49 69 509 547 400 | Mail. info@droniq. de

Product features

Sale possible only to traders
Weight
1.41 kg
Dimensions
335×398×153 mm
Protection class
IP54
Operating temperature
-20 °C to 45 °C
Power supply
Battery
Flight time
50 min
Flight distance
10 km
Flight altitude
4000 m
Airspeed
21 m/s
Payload
200 gram
Take-off weight
1.61 kg
Propeller type
1149, foldable, no quick release
Motor model
2607
Manufacturer
DJI
CE marking

Downloads / Links

Advantages

  • DJI Matrice 3TD was specially developed for DJI Dock 2, but can also be used individually in the special category.
  • Battery can be charged in the DJI Dock 2 in just under 30 minutes
  • Powerful camera performance thanks to infrared, telephoto and wide-angle camera
  • Flight time up to 50 minutes
  • Up to 10 km flight radius possible
  • Obstacle detection system in 6 directions
  • Integrated RTK module achieves positioning accuracy in the centimeter range
  • Ideal for safety tasks & inspection

Intended use DJI Matrice 3TD Thermal

Operations can be designed incredibly efficiently using infrared, telephoto and wide-angle cameras and an integrated RTK module for precision down to the centimeter.

The DJI Matrice 3TD was specially developed for flying with the DJI Dock 2 and is therefore ideally suited for security and inspection tasks.

Scope of delivery DJI Matrice 3TD Thermal

  • 1x DJI Matrice 3TD Thermal aircraft (with microSD card inserted)
  • 1x CW propeller (pair)
  • 1x CCW propeller (pair)
  • 1x screws and washers
  • incl. 1 year care
  • Optional: rechargeable battery and remote control

Note: The DJI Matrice 3TD can be used individually or in combination with the DJI Dock 2 drone garage. Individually, the Matrice M3TD can be flown in the special category.

Technical data

AircraftDJI Matrice M3DDJI Matrice M3TD
Weight (incl. two batteries)1.410 g

This value includes the weight of the battery, propellers and a microSD card, but not third-party payloads. The actual weight may vary due to different batch materials and external factors.		1.410 g

This value includes the weight of the battery, propellers and a microSD card, but not third-party payloads. The actual weight may vary due to different batch materials and external factors.
Max. Take-off weight1.610 g1.610 g
Dimensions335 × 398 × 153 mm (L×W×H, without propeller)335 × 398 × 153 mm (L×W×H, without propeller)
Diagonal lengthDiagonal center distance: 463.2 mm
Center distance left to right: 359.9 mm
Center distance front to rear: 291.4 mm		Diagonal center distance: 463.2 mm
Center distance left to right: 359.9 mm
Center distance front to rear: 291.4 mm
Max. Climbing speed6 m/s (normal mode)
8 m/s (Sport mode)		6 m/s (normal mode)
8 m/s (Sport mode)
Max. Sink rate6 m/s (normal mode)
6 m/s (Sport mode)		6 m/s (normal mode)
6 m/s (Sport mode)
Maximum speed (at NHN, with no wind)Normal mode, with obstacle detection activated: 15 m/s flying forwards, 12 m/s flying backwards, 10 m/s flying sideways
Sport mode: 21 m/s flying forwards, 18 m/s flying backwards, 16 m/s flying sideways		Normal mode, with obstacle detection activated: 15 m/s flying forwards, 12 m/s flying backwards, 10 m/s flying sideways
Sport mode: 21 m/s flying forwards, 18 m/s flying backwards, 16 m/s flying sideways
Max. Wind resistanceDuring operation: 12 m/s
During take-off/landing: 8 m/s		During operation: 12 m/s
During take-off/landing: 8 m/s
Max. Starting height4.000 m4.000 m
Max. Flight time50 minutes

Note: Tested in a controlled environment. The specific test conditions are as follows: Forward flight at a constant speed of 46.8 km/h in a windless laboratory environment at a height of 20 meters above sea level, in photo mode (without taking photos during flight), with obstacle avoidance turned off and a battery level of 100% to 0%. Actual results may vary depending on environment, usage and firmware version.		50 minutes

Note: Tested in a controlled environment. The specific test conditions are as follows: Forward flight at a constant speed of 46.8 km/h in a windless laboratory environment at a height of 20 meters above sea level, in photo mode (without taking photos during flight), with obstacle avoidance turned off and a battery level of 100% to 0%. Actual results may vary depending on environment, usage and firmware version.
Max. Suspend time40 minutes

Note: Measured with DJI Matrice 3D series drones in a windless environment hovering 20 meters above sea level with a battery level of 100% to 0%. Actual results may vary depending on environment, usage and firmware version.		40 minutes

Note: Measured with DJI Matrice 3D series drones in a windless environment hovering 20 meters above sea level with a battery level of 100% to 0%. Actual results may vary depending on environment, usage and firmware version.
Max. Operating radius10 km

Note: Measured at approx. 25 °C with a battery level of 25 % of the spare battery, an ambient wind speed of approx. 4 m/s, a round trip speed of approx. 15 m/s and a hovering flight of 10 minutes. The actual results may vary depending on the environment, use and firmware version.		10 km

Note: Measured at approx. 25 °C with a battery level of 25 % of the spare battery, an ambient wind speed of approx. 4 m/s, a round trip speed of approx. 15 m/s and a hovering flight of 10 minutes. The actual results may vary depending on the environment, use and firmware version.
Max. Flight distance43 km

Note: Measured with a DJI Matrice 3D/3TD flying at a constant speed of 54 km/h in a windless environment at 20 meters above sea level and a battery level of 100 % to 0 %. Actual results may vary depending on environment, usage and firmware version.		43 km

Note: Measured with a DJI Matrice 3D/3TD flying at a constant speed of 54 km/h in a windless environment at 20 meters above sea level and a battery level of 100 % to 0 %. Actual results may vary depending on environment, usage and firmware version.
Max. Pitch angle25° (normal mode)
25° (sport mode)		25° (normal mode)
25° (sport mode)
Max. Angular velocity250°/s250°/s
Global navigation satellite systemGPS + Galileo + BeiDou + GLONASS (GLONASS is only supported if the RTK module is activated).GPS + Galileo + BeiDou + GLONASS (GLONASS is only supported if the RTK module is activated).
Hovering accuracy (windless or windy)Vertical:
±0.1 m (with visual positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Horizontal:
±0.3 m (with line-of-sight positioning)
±0.5 m (with GNSS positioning)
± 0.1 m (with RTK positioning)		Vertical:
±0.1 m (with visual positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Horizontal:
±0.3 m (with line-of-sight positioning)
±0.5 m (with GNSS positioning)
± 0.1 m (with RTK positioning)
Operating temperature-20 °C to 45 °C-20 °C to 45 °C
Protection classIP54IP54
Motor model26072607
Propeller type1149, foldable, no quick release1149, foldable, no quick release
RTK moduleIntegrated in the aircraftIntegrated in the aircraft
Signal lampIntegrated in the aircraftIntegrated in the aircraft
Wide angle cameraDJI Matrice M3DDJI Matrice M3DT
Camera sensor4/3 CMOS, Effective pixels: 20 MP1/1.32″ CMOS, effective pixels: 48 MP
LensField of view: 84
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞		Field of view: 82°
Equivalent focal length: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
Lens dehumidificationThe wide-angle camera supports lens dehumidification.The wide-angle camera supports lens dehumidification.
ISO100-6400100 to 25600
Shutter speedElectronic shutter: 8 to 1/8000 s
Mechanical shutter: 8 to 1/2000 s		Electronic shutter: 8 to 1/8000 s
Max. Image sizeSingle shot: 20 MP
Interval: 20 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Low-Light: 20 MP
Panorama: 20 MP (RAW image); 100 MP (composite image)

Note: The 0.7 s and 1 s intervals are not supported when taking timed 48MP photos.		Single shot: 12 MP, 48 MP
Interval: 12 MP, 48 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s*
Smart Low-Light: 12 MP
Panorama: 12 MP (RAW recording); 100 MP (composite image)

Note: The 0.7 s and 1 s intervals are not supported when taking timed 48MP photos.
Video resolutionH.264
4K: 3840 × 2160 at 30 fps
FHD: 1,920 × 1,080 at 30 fps		H.264
4K: 3840 × 2160 at 30 fps
FHD: 1,920 × 1,080 at 30 fps
Video bitrate4K: 130 MBit/s
FHD: 70 Mbit/s		4K: 85 MBit/s
FHD: 30 MBit/s
Supported file systemsexFATexFAT
Photo formatJPEGJPEG
Video formatMP4 (MPEG-4 AVC / H.264)MP4 (MPEG-4 AVC / H.264)
TelecameraDJI Matrice M3DDJI Matrice M3TD
Camera sensor1/2″ CMOS, effective pixels: 12 MP1/2″ CMOS, effective pixels: 12 MP
LensField of view: 15°
Equivalent focal length: 162 mm
Aperture: f/4.4
Focus: 3 m to ∞		Field of view: 15°
Equivalent focal length: 162 mm
Aperture: f/4.4
Focus: 3 m to ∞
Lens dehumidificationThe telephoto camera supports lens dehumidification.The telephoto camera supports lens dehumidification.
ISO100-6400100 to 25600
Shutter speedElectronic shutter: 8 to 1/8000 sElectronic shutter: 8 to 1/8000 s
Max. Image size4000×30004000×3000
Photo formatJPEGJPEG
Video formatMP4 (MPEG-4 AVC / H.264)MP4 (MPEG-4 AVC / H.264)
Photo modesSingle shot: 12 MP
Interval: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Low-Light: 12 MP		Single shot: 12 MP
Interval: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Low-Light: 12 MP
Video resolutionH.264
4K: 3840 × 2160 at 30 fps
FHD: 1,920 × 1,080 at 30 fps		H.264
4K: 3840 × 2160 at 30 fps
FHD: 1,920 × 1,080 at 30 fps
Video bitrate4K: 130 MBit/s
FHD: 70 Mbit/s		4K: 85 MBit/s
FHD: 30 MBit/s
Digital zoom8x (56x hybrid zoom)8x (56x hybrid zoom)
Thermal imaging cameraDJI Matrice M3DDJI Matrice M3DT
Thermal imaging sensor-Uncooled VOx microbolometer
Pixel pitch-12 μm
Frame rate-30 Hz
Lens-Field of view: 61°
Equivalent focal length: 40 mm
Aperture: f/1.0
Focus: 5 m to ∞

Note: Do NOT expose the lenses of the infrared camera to strong energy sources such as the sun, lava or laser beams. Otherwise, the camera sensor may be burnt, resulting in permanent damage.
Sensitivity-≤ 50 mk at F1.0
Temperature measurement method-Point measurement, area measurement
Temperature measuring range--20 °C to 150 °C (high gain mode)
0° to 500 °C (low amplification mode)
Pallet-White hot/Black hot/Tint/Iron red/Hot iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo format-JPEG (8 bit)
R-JPEG (16 bit)
Video resolution-Normal mode: 640 × 512 at 30 fps
CLOCK infrared image mode: 1280 x 1024 at 30 fps (when the "CLOCK infrared image" function is activated, the aircraft can automatically activate or deactivate the "CLOCK infrared image" mode according to the brightness of the ambient light).
Video bitrate-6 MBit/s
Video format-
MP4 (MPEG-4 AVC / H.264)
Photo modes-Single shot
Normal mode: 640 × 512
CLOCK infrared image mode: 1280 × 1024

Interval
Normal mode: 640×512, 0.7/1/2/3/5/7/10/15/20/30/60 s
CLOCK infrared image mode: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s
Digital zoom-28x
Infrared wavelength-8 to 14 μm
Infrared temperature measurement accuracy-±2 °C or ±2 % (when using the larger value)
GimbalDJI Matrice M3DDJI Matrice M3TD
StabilizationMechanical 3-axis gimbal suspension (tilting, rolling, swiveling)Mechanical 3-axis gimbal suspension (tilting, rolling, swiveling)
Mechanical areaTilt: -135° to +45°
Roll: -45° to +45°
Pan: -27° to +27°		Tilt: -135° to +45°
Roll: -45° to +45°
Pan: -27° to +27°
Controllable rangeTilt: -90° to +35°
Pan: Not controllable		Tilt: -90° to +35°
Pan: Not controllable
Max. Control speed (tilt)100°/s100°/s
Angular vibration range±0,005°±0,005°
RecognitionDJI Matrice M3DDJI Matrice M3TD
Recognition systemThe flying device supports the detection of obstacles in six directions.

Note: The aircraft has a blind spot of 10° in the upper rear area. Always fly carefully.		The flying device supports the detection of obstacles in six directions.

Note: The aircraft has a blind spot of 10° in the upper rear area. Always fly carefully.
To the frontMeasuring range: 0.5 - 21 m
Detection range: 0.5 - 200 m
Effective detection speed: Airspeed ≤ 15 m/s
Field of vision: Horizontal: 90°, vertical: 90°		Measuring range: 0.5 - 21 m
Detection range: 0.5 - 200 m
Effective detection speed: Airspeed ≤ 15 m/s
Field of vision: Horizontal: 90°, vertical: 90°
To the rearMeasuring range: 0.5 - 23 m
Effective detection speed: Airspeed ≤ 12 m/s
Field of view: Horizontal: 90°, vertical: 90°		Measuring range: 0.5 - 23 m
Effective detection speed: Airspeed ≤ 12 m/s
Field of view: Horizontal: 90°, vertical: 90°
LateralMeasuring range: 0.5 - 15 m
Effective detection speed: Airspeed ≤ 10 m/s
Field of vision: Horizontal: 104°, Vertical: 90°		Measuring range: 0.5 - 15 m
Effective detection speed: Airspeed ≤ 10 m/s
Field of vision: Horizontal: 104°, Vertical: 90°
To the topMeasuring range: 0.5 - 21 m
Effective detection speed: Airspeed ≤ 6 m/s
Field of vision: Front and rear 90°, left and right 90°		Measuring range: 0.5 - 21 m
Effective detection speed: Airspeed ≤ 6 m/s
Field of vision: Front and rear 90°, left and right 90°
DownwardsMeasuring range: 0.5 - 14 m
Effective detection speed: Airspeed ≤ 6 m/s
Field of vision: Front and rear 95°, left and right 110°		Measuring range: 0.5 - 14 m
Effective detection speed: Airspeed ≤ 6 m/s
Field of vision: Front and rear 95°, left and right 110°
Operating environmentForwards, backwards, to the left, to the right and upwards: Surfaces with clear contours in sufficient lighting conditions (lux > 15)
Downwards: Surface with diffuse reflectance > 20 % (e.g. walls, trees, people) and adequate lighting (lux > 15).		Forwards, backwards, to the left, to the right and upwards: Surfaces with clear contours in sufficient lighting conditions (lux > 15)
Downwards: Surface with diffuse reflectance > 20 % (e.g. walls, trees, people) and adequate lighting (lux > 15).
Video transmissionDJI Matrice M3DDJI Matrice M3DT
Video transmission systemTransfer DJI O3 EnterpriseTransfer DJI O3 Enterprise
Live view quality20p/30fps, 1080p/30fps (with DJI RC Pro Enterprise)
540p/30fps, 720p/30fps, 1080p/30fps (with DJI FlightHub 2)		20p/30fps, 1080p/30fps (with DJI RC Pro Enterprise)
540p/30fps, 720p/30fps, 1080p/30fps (with DJI FlightHub 2)
Operating frequency2.4000 to 2.4835 GHz
5.150 to 5.250 GHz (CE: 5.170 to 5.250 GHz)
5.725 to 5.850 GHz

In some countries and regions, the 5.1 GHz and 5.8 GHz frequency bands are prohibited or the 5.1 GHz frequency band is only permitted for indoor use. For more information, please refer to local laws and regulations.		2.4000 to 2.4835 GHz
5.150 to 5.250 GHz (CE: 5.170 to 5.250 GHz)
5.725 to 5.850 GHz

In some countries and regions, the 5.1 GHz and 5.8 GHz frequency bands are prohibited or the 5.1 GHz frequency band is only permitted for indoor use. For more information, please refer to local laws and regulations.
Max. Transmission range (without obstacles and interference)FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

Note: Measured in an outdoor environment without obstacles or interference. The above data shows the longest communication range for each standard for a flight in one direction, excluding return flight. During the flight, always pay attention to the warning message to return to DJI FlightHub 2.		FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

Note: Measured in an outdoor environment without obstacles or interference. The above data shows the longest communication range for each standard for a flight in one direction, excluding return flight. During the flight, always pay attention to the warning message to return to DJI FlightHub 2.
Max. Transmission range (without obstacles, with interference)Strong interference (dense buildings, residential areas, etc.): 1.5 to 3 km (FCC/CE/SRRC/MIC)
Medium interference (suburban areas, city parks, etc.): 3 to 9 km (FCC), 3 to 6 km (CE/SRRC/MIC)
Low disturbance (open spaces, remote areas, etc.): 9 to 15 km (FCC), 6 to 8 km (CE/SRRC/MIC)

Note: Measured with aircraft in flight (excluding third party payloads) in open environments with typical interference. The above data shows the longest communication range for each standard for a flight in one direction, excluding return flight. During the flight, always pay attention to the warning message to return to DJI FlightHub 2.		Strong interference (dense buildings, residential areas, etc.): 1.5 to 3 km (FCC/CE/SRRC/MIC)
Medium interference (suburban areas, city parks, etc.): 3 to 9 km (FCC), 3 to 6 km (CE/SRRC/MIC)
Low disturbance (open spaces, remote areas, etc.): 9 to 15 km (FCC), 6 to 8 km (CE/SRRC/MIC)

Note: Measured with aircraft in flight (excluding third party payloads) in open environments with typical interference. The above data shows the longest communication range for each standard for a flight in one direction, excluding return flight. During the flight, always pay attention to the warning message to return to DJI FlightHub 2.
Max. Download speed5 MB/s (with DJI Dock 2)
15 MB/s (with DJI RC Pro Enterprise)

Note: Measured in a lab environment with low interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on actual conditions.		5 MB/s (with DJI Dock 2)
15 MB/s (with DJI RC Pro Enterprise)

Note: Measured in a lab environment with low interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on actual conditions.
Lowest latencyThe latency for video transmission from the aircraft to the dock is approximately 110 to 150 milliseconds (depending on the actual environmental conditions).
The latency for the video transmission from the dock to the DJI FlightHub 2 is influenced by the actual network conditions and the configuration of the computer.		The latency for video transmission from the aircraft to the dock is approximately 110 to 150 milliseconds (depending on the actual environmental conditions).
The latency for the video transmission from the dock to the DJI FlightHub 2 is influenced by the actual network conditions and the configuration of the computer.
Antennas4 antennas, 2 transmitters, 4 receivers4 antennas, 2 transmitters, 4 receivers
Radiated power (EIRP)2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (CE)
5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)		2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (CE)
5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
StorageDJI Matrice M3DDJI Matrice M3DT
Supported memory cardsAircraft:
U3/Class10/V30 or higher is supported. A list of recommended microSD cards can be found below.		Aircraft:
U3/Class10/V30 or higher is supported. A list of recommended microSD cards can be found below.
Recommended microSD cardsAircraft:
SanDisk Extreme 32 GB V30 A1 microSDHC
SanDisk Extreme PRO 32 GB V30 A1 microSDHC
SanDisk Extreme 512 GB V30 A2 microSDXC
Lexar 1066x 64 GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64 GB V30 A2 microSDXC
Kingston Canvas React Plus 64 GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128 GB V30 A2 microSDXC
Kingston Canvas React Plus 128 GB V90 A1 microSDXC
Kingston Canvas React Plus 256 GB V90 A2 microSDXC
Samsung PRO Plus 256 GB V30 A2 microSDXC		Aircraft:
SanDisk Extreme 32 GB V30 A1 microSDHC
SanDisk Extreme PRO 32 GB V30 A1 microSDHC
SanDisk Extreme 512 GB V30 A2 microSDXC
Lexar 1066x 64 GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64 GB V30 A2 microSDXC
Kingston Canvas React Plus 64 GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128 GB V30 A2 microSDXC
Kingston Canvas React Plus 128 GB V90 A1 microSDXC
Kingston Canvas React Plus 256 GB V90 A2 microSDXC
Samsung PRO Plus 256 GB V30 A2 microSDXC
BatteryDJI Matrice M3DDJI Matrice M3TD
Capacity7,811 mAh7,811 mAh
Standard voltage14,76 V14,76 V
Max. Charging voltage17,0 V
TypeLi-Ion 4SLi-Ion 4S
Chemical compositionLiNiMnCoO2LiNiMnCoO2
Energy115.2 Wh115.2 Wh
Weight544 g544 g
Number of cycles400400
Loading temperature5 °C to 45 °C5 °C to 45 °C
ChargerDJI Matrice M3DDJI Matrice M3TD
Input100 to 240 V AC, 50 to 60 Hz, 2.5 A100 to 240 V AC, 50 to 60 Hz, 2.5 A
Output power100 W100 W
OutputMax. 100 W (total)

Note: If both charging ports are used, the power supply unit dynamically assigns the output power of the two ports according to the load power, whereby the maximum output power of one port is 82 W.		Max. 100 W (total)

Note: If both charging ports are used, the power supply unit dynamically assigns the output power of the two ports according to the load power, whereby the maximum output power of one port is 82 W.
Charging stationDJI Matrice M3DDJI Matrice M3TD
InputUSB-C: 5 to 20 V; 5.0 AUSB-C: 5 to 20 V; 5.0 A
OutputBattery slot: 12 to 17 V; 8.0 ABattery slot: 12 to 17 V; 8.0 A
Rated power100 W100 W
Loading typeOnly one battery is charged at a time.Only one battery is charged at a time.
Loading temperature5 °C to 40 °C5 °C to 40 °C

Frequently asked questions about commercial drone leasing:

Leasing for drones is possible for 24 or 36 months. The lease term is extended by another 12 months if not cancelled in time (6 months) by the end date.

Drone leasing is intended exclusively for commercial customers. Ideally, the lessee should have been active in the market for at least 24 months. Sufficient creditworthiness is a prerequisite.

Droniq GmbH supports you in the right selection of the drone, prepares the offer and acts as an intermediary in the leasing. The leasing contract itself is concluded with DLL Group (lessor), our leasing partner. The delivery of the drone takes place via Droniq.

Early contract termination is possible at any time upon repurchase at the current residual value of the drone. An extension is also possible after the end of the term. Lease contracts that are not terminated in due time at the end date (6 months) are automatically extended by another 12 months.

At the end of the leasing period, the lessee has the option to purchase the drone for its residual value. Furthermore, there is the possibility to redeem the drone during the leasing period.

There is an electronics insurance that can be optionally selected when the leasing object is contracted, so that in the event of damage, a simple settlement is possible at any time. The insurance partner for the electronics insurance is HDI Versicherung AG.

The use of the leased drone is generally only permitted in Germany. Deviating locations (in other EU countries) must be requested and approved by the lessor. Permanent use outside the EU is not possible.

Only new equipment is delivered to lessees.

WHO IS HELPED
THE MAVIC 3 ENTERPRISE?
ROUTES AERIAL FLIGHT
BUILDING INSPECTION
WATER RESCUE

Facts about the DJI Matrice 3TD Thermal

0 m/s
fast
0 min
in the air
0 m
high

DJI Matrice 3D with the& DJI Dock 2 in video....

Product features of the DJI Matrice 3TD Thermal

  • Detection system for obstacle avoidance

    The aircraft supports obstacle detection in six directions.

  • Weather resistant

    The DJI Matrice M3D is ready for use in extreme weather conditions and is dust and waterproof with an IP54 rating. This means it can be operated flawlessly in harsh climates and environments over long periods of time.

  • Integrated RTK module

    Thanks to a built-in RTK module, the positioning accuracy is plus/minus 3cm.

  • High number of battery cycles

    The battery of the DJI Matrice M3D can be charged up to 400 battery cycles. The maximum flight time is 50 minutes per mission.

  • Powerful infrared, wide-angle and telephoto camera

    The infrared camera offers a format equivalent of 40 mm and enables a resolution of 640×512 at 30 fps in normal mode. In UHR infrared image mode, it achieves a resolution of 1280×1024 at 30 fps, with the aircraft automatically switching between modes depending on the ambient brightness. It also has a 28x digital zoom.

    The wide-angle camera is equipped with a 1/1.32-inch CMOS sensor and offers a format equivalent of 24 mm and an effective resolution of 48 MP.

    The telephoto camera has a 1/2-inch CMOS sensor with a format equivalent of 162 mm and an effective resolution of 12 MP.

Our competences

Full Service
Solutions

Droniq supports BOS & industry in all phases of drone operations.

Real
Experts

More than 30 years of know-how in aviation & telecommunications.

Experienced
industry professionals

Specialized in BOS and industrial drones.

Quality
seal

Droniq is a certified DJI Enterprise dealer.

Complementary products

About the product
DJI Dock 2
Powerful & small drone platform for DJI Matrice 3D or 3TD drones
About the product
Dronetag MINI
Micro LTE transponder for drone visualization

Similar products

About the product
DJI Matrice 3D
Drone with telephoto and wide-angle camera especially for DJI Dock 2

Questions about the product?

Fill out the form. We will call you back or contact you by email.

"*" indicates required fields

Consent*
Contact

LET THE
DRONE EXPERTS
ADVICE

Nicolas Koch, Business Development & Sales Manager
Tel. +49 69 509 547 400 | vertrieb@droniq.de

Contact form
Contact
Phone +49 69 509 547 400 |
Mail. info@droniq.de
| Contact form
Newsletter
Receive regular updates from us.
Newsletter
Receive regular updates from us.
Legal
News & Events
Product highlights
Services
Company
Legal
News & Events
Product highlights
Services
Company
Follow us
Droniq App
Follow us
Droniq App

Christmas promotion from 01.12. until 31.12.2024

Discover our festive surprise on selected products, such as:

To the Christmas campaign
