Intended use
The DJI cellular dongles have been specially developed for DJI drones, drone-in-a-box systems and remote controls and enable a reliable 4G data connection - ideal for professional applications where secure control and stable data transmission are essential. Whether police, fire department or aid organizations: The dongles ensure a robust connection, even in the presence of obstacles, weak radio signal or challenging terrain.
Typical fields of application:
-
Police: Situation monitoring at major events, unobtrusive observation, aerial photography in urban areas with high radio density
-
Fire department: investigation of fire sources, detection of embers using a thermal imaging camera, real-time transmission to the operations control center
-
Relief organizations: Situation assessment after natural disasters, search for people in rough terrain, support during evacuations with live image data
The dongles extend range and communication security, bridge radio gaps and enable reliable control of your drone via the mobile network - especially when precision and availability are crucial. In addition, a free DJI subscription for the extended transmission service is included in the first year. This makes the dongles the ideal solution for missions where every second and every image counts.
For the best possible use, two dongles are required - one for the drone and one for the remote control. Depending on the DJI device used, either the DJI Mobile Dongle 1 or the DJI Mobile Dongle 2 is used.
Upgrade now - for maximum safety, range and control for professional drone missions!
Compatibility
The mobile dongle 1 (LTE USB modem) is compatible with the following DJI devices:
- RC Pro
- RC Plus
- DJI Mavic 3 Pro/Pro Cine*
- DJI Matrice M30/M30T*
- DJI Matrice M300 series*
- DJI Matrice M350 series*
- DJI Dock 1
The Mobile Dongle 2 is compatible with the following DJI devices:
- DJI Dock 2/3
- DJI Matrice 3D/3TD
- DJI Matrice 4T/4E
- DJI Air 3/Air 3S Series
- DJI Mini 4 Pro*

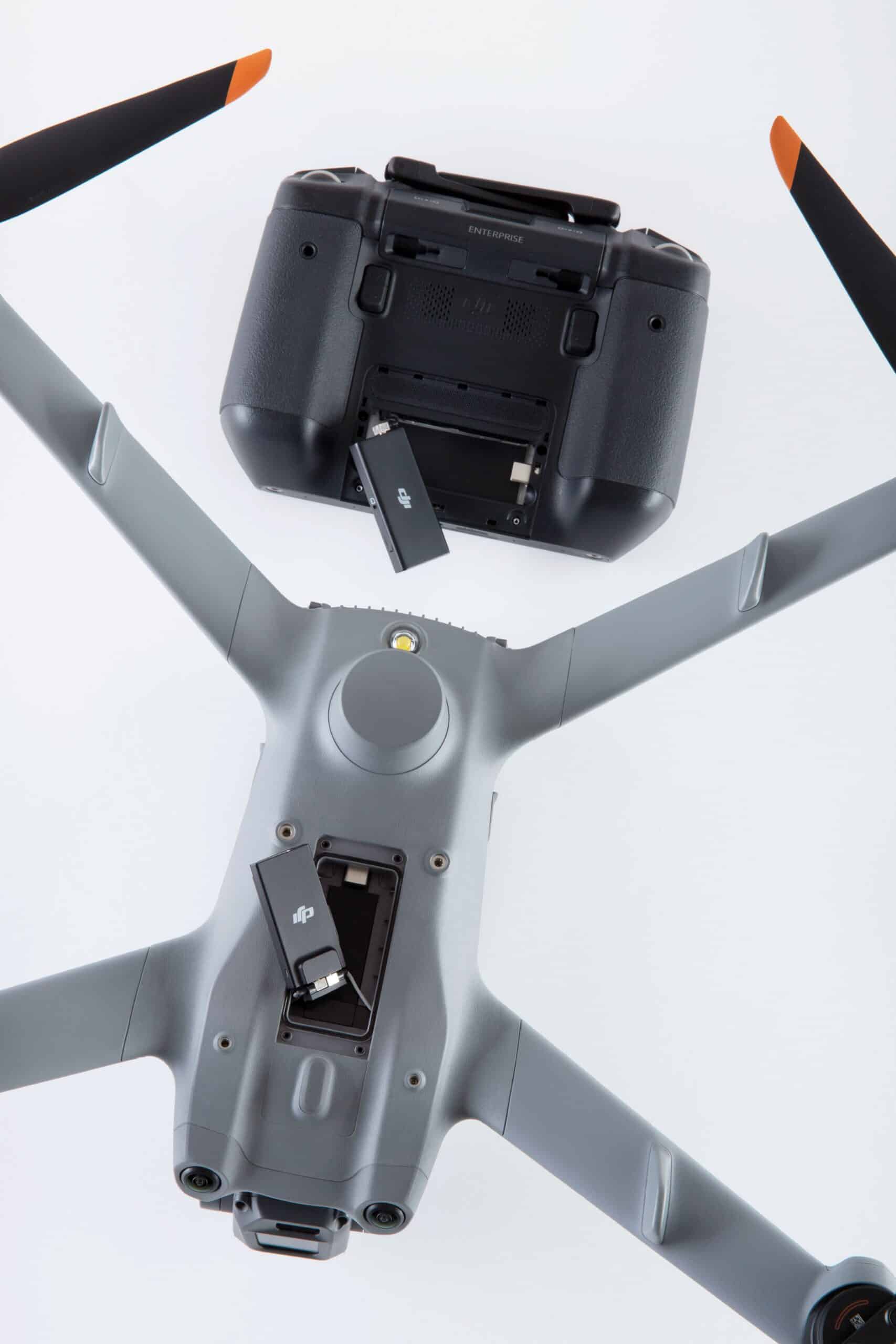

Note: For the Mini 4 Pro, Mavic 3, Matrice M30 series and M300/350 RTK series, a mounting kit is required, which is included in the scope of delivery.
Scope of delivery
- 1x DJI mobile radio dongle 1 or 2 (depending on variant incl. mounting kit)
- 1x screwdriver
- 1x cable clamp
- Incl. connectivity (minimum term 12 months)
- Includes built-in SIM card from Deutsche Telekom
- Billing either monthly or annually
- Incl. subscription for the extended transmission service in the first year
- Incl. annual subscription TraX Basic (live air situation) without automatic renewal
Notice:
- Sale & delivery only to BOS units. We reserve the right to cancel orders.
- The 4G dongle offers a free subscription to the extended transmission service for the first year and is the ideal solution for applications where every second and every image counts. From the 2nd year, costs of 29 EUR apply. The enhanced transmission can only be booked via the DJI app. Information on installing the dongles can be found here.
- The annual connectivity subscription is automatically terminated after 12 Mondays and must be actively renewed by the user. The costs for renewal are as follows: EUR 55.00 net for monthly billing, EUR 649.00 net for annual billing.
Technical data
Dongle 1:
- Telecommunications standards: TDD-LTE/FDD-LTE/WCDMA
- Operating frequency bands:
- TDD-LTE: B34/38/39/40/41
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: 850/900/1800/1900 MHz
- Interfaces: USB-C port, nano SIM card slot, TS-5 antenna connectors
- Antennas: Dual antennas
- Dimensions: 52.4 × 23 × 8 mm
- Weight: Approx. 15 g
- Operating voltage/current: 5 V, 1 A
- Operating temperature: -20 °C to 55 °C
- Storage temperature: -40 °C to 70 °C
Dongle 2:
- Telecommunications standards: TDD-LTE/FDD-LTE/WCDMA
- Operating frequency bands
- TDD-LTE: B34/38/39/40/41 (194M)
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- Interfaces: USB-C port, nano SIM card slot, TS-5 antenna connectors
- Antennas: Dual antennas
- Dimensions: 43.5 x 23.0 x 7.0 mm
- Weight: Approx. 11.5 g
- Operating voltage/current: 5 V, 1 A
- Operating temperature: -30 °C to 65 °C
- Storage temperature: -40 °C to 85 °C
Information on product safety
Manufacturer:
DJI GmbH
Industriestrasse 12
97618 Niederlauer
Niederlauer, Germany
support.eu@dji.com
SZ DJI Technology Co.,Ltd
Lobby of T2, DJI Sky City, No. 53 Xianyuan Road, Xili Community, Xili Street, Nanshan District
518057 Shenzhen
Shenzhen, China
support@dji.com
Intermediaries:
Globe Flight GmbH
Borsigstrasse 7
93092 Barbing
Germany
info@globe-flight.de
Explanatory video: More range for drones with DJI dongles
Product features of the DJI Mobile Dongles 1 and 2
-
Trouble-free control
Ensures a secure connection between the drone and the controller - even with a weak RC signal or physical obstacles.
-
Extended range
Developed for complex locations such as urban areas, industrial plants or remote regions.
-
Real-time transmission
Delivers razor-sharp live images and videos directly to the operations center - for precise decisions on site.
-
Great compatibility
Supports many DJI devices for maximum flexibility.
-
Fast integration
Compatible with DJI devices, can be installed without additional effort - ready for use in just a few minutes.
